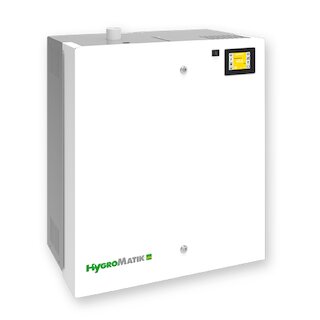

FlexLine steam generators.
High flexibility in award-winning quality.

With the FlexLine, HygroMatik provides a modern generation of steam generators which consists of a basic model that can be expanded to create an individual solution suitable for all steam requirements. In order to make this flexibility available to you quickly, we have developed a modular system. This was awarded in three categories and FlexLine received the Plus X Award.



Flexibility pays dividends.

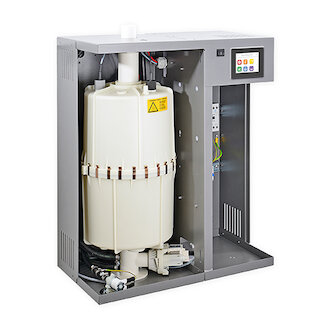

air humidification system spa wellnessair humidification electrodes air humidification system

All advantages at a glance.

  • A series of units for all applications and performance categories
  • Ease of installation by means of individual pre-configuration ex factory
  • Expansion of options for retrofitting
  • You only invest in the functions you really need
  • Easy operation
  • Highest quality and energy efficiency
  • Environmentally friendly incorporating reusable components
Product description

Custom made for every areas of application.

The FlexLine basic model is the basis for all other configuration options. Through its individual extension capability, FlexLine is able to adapt to the requirements of differing applications in the spa and wellness sector.

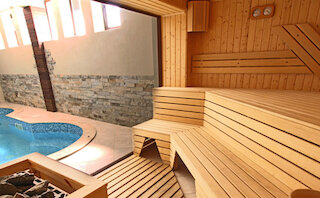

air humidification in spa and wellness
steam bath steam humidification steam generator

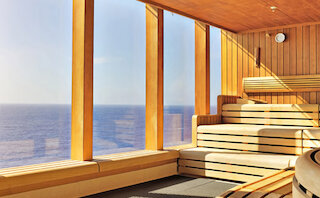

air humidification in the wellness area on cruise ships

Using the best method for optimum steam production.

FlexLine is available as an electrode as well as a heater element steam generator – depending on your water quality.

air humidification with electrodes

Replaceable stainless steel large area electrodes for different conductivities

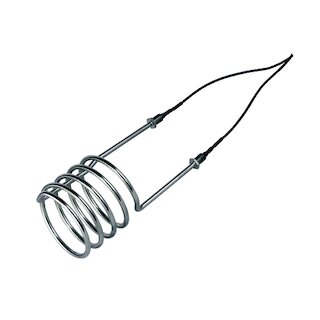

air humidification heating element

Resistor type heater elements in highly corrosion resistant alloy

Always the right performance for a rich steam picture.

Equip HygroMatik FlexLine with the power you need for optimum steam output. 16 performance classes with steam output from 10 lbs/hr up to 300 lbs/hr selectable in 6 unit sizes. An additional performance limitation can easily be programmed.

Manifold options for a steam solution that fits perfectly.

Every installation is different, and so every project places unique requirements on the steam solution. The FlexLine can be equipped with a wide range of options to optimally meet your project requirements. In addition, various protection and security functions can be installed and activated, e.g.

  • HyFlush (cylinder flushing device)
  • HyCool (integrated waste water cooling)
  • Stub line flushing

This means that your system is optimally protected around the clock and you have less maintenance work. If needed, all options can be retrofitted. We are always pleased to provide advice.

Excellent ease of operation.

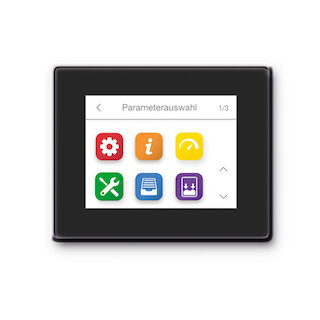

All HygroMatik FlexLine units are equipped with a capacitive 3.5“ touch screen whereby operation and programming is selected via a flat and intuitive menu structure analogous to modern smartphone logic. In addition to this, subsequent software updates are quickly and easily possible via USB stick.

  • At a glance comprehensible pictographs provide information on the operating condition
  • Simple and fast navigation
  • Information and system messages displayed as plain text
  • Easy planning of operating periods by means of programmable timer functions
  • Readout of service messages with date and time
  • Integrated real-time clock
  • Optional: Spa Touch Control – 5“ touch screen for external control
air humidification control

Smart control – powerful and quick response.

The control and regulation technology of FlexLine units provides extensive possibilities that are simple and easy to operate.



  • Highest regulating accuracy and top protection from excessive temperatures by means of second supply air and ventilation steam bath fan
  • The option of up to 4 different lighting scenarios
  • Flexible switchover of up to 4 essences without changing containers
  • Freely programmable with overload protected digital input
  • Integrated communication protocol, Modbus RTU or BAcnet
  • Numerous control and reporting functions can be assigned to up to 11 relays depending on the unit

Optimized unit performance for an efficient utilization.

As with all our products, the HygroMatik FlexLine has been developed for an expecially long life span. The units feature technologies that not only reduce the amount of maintenance required but also the wear of components. FlexLine offers the highest degree of efficiency where energy and resources are concerned.

electrode for steam humidifiers direct room humidification
  • Adjustable power limitation from 25 - 100 %
  • Adjustable load shedding to temporarily adapt operation to the respective load conditions
  • Active energy saving with the ECO function and flexible adjustment of the timer functions
  • Long-term continuous operation: A robust base material provides our reusable cylinders to achieve a high temperature resistance and dimensional stability
  • The split cylinder can simply be opened and cleaned without using chemicals
  • Extremely durable: All FlexLine cabinets are manufactured in corrosion-resistant stainless steel; the powder coating of the housing increases the lifespan and offers optimum work safety
air humidification pump
  • Robust blow-down pump for removing scale deposits to ensure long operating life cycles and minimal maintenance
  • Highest safety standard for electrode steam generators due to integrated mechanical circuit breaker and mechanical safety temperature limiter for heater type steam generators
  • Heater type steam generators with capacitive proportional water level sensor without wearing parts

Comprehensive service functions.

We have equipped the HygroMatik FlexLine with smart service functions  for operational reliability. These provide a high level of safety, control and transparency.



  • Diagnosis mode can be actuated directly via the touch screen without having to start the unit
  • Service messages are easy to select: Service intervals are calculated and issued based on the quantity of steam produced by the unit
  • Smart controlled status messages avoid damage and expensive service operations
  • Detailed messages enable errors to be identified sooner and rectified
Applications
Spa and wellness
