MiniSteam E. For direct room humidification.

The HygroMatik MiniSteam E is an electrode steam humidifier for direct room humidification with steam outputs of 10 and 20 lb/h. It has been designed for humidification of small and medium-sized offices as well as production and storage rooms. The MiniSteam E generates hygienic steam from tap water and is particularly environmentally friendly and efficient.


The units are CSA C/US certified.

air humidification direct room humidificationair humidification direct room humidification
Product description

Direct room humidifying.

The MiniSteam E is a steam humidifier for direct room humidification. It can be operated with normal drinking water and produces pure, mineral-free steam. Its integrated, smooth-running ventilation unit distributes the hygienic steam evenly throughout the room.

Minimal maintenance and long service life.

The proven high-quality components of our MiniSteam E guarantee long service life with minimal maintenance.

  • The exchangeable large-area electrodes made of stainless steel start quickly and last long.
  • The steam cylinder divided in the middle has an optimized volume - good for long service life. In addition, the robust blowdown pump transports many hardeners into the drain. Even small pieces can be pumped off. This considerably extends the maintenance cycles
  • The housing with the corrosion-resistant stainless steel tray can be opened conveniently - all components are easily accessible. The unit is lockable to prevent unauthorized access
  • Cylinder maintenance is done quickly: simply open, clean and reuse without chemicals

The well thought-out components protect the environment and you save money.

The HygroMatik MiniSteam E processes all common control signals and automatically adapts to the respective water quality.

Ease of use - all information at a glance.

With the clear LED display, you always have all important unit and process data in view. The simple display symbols give instant clarity about the status of the steam humidifier. The control buttons allow quick and intuitive navigation through the clear and easy-to-understand menu.
At a glance:

  • Continuous or single-stage control
  • Integrated PI control
  • Automatic system test
  • 2 potential-free remote signals
  • Integrated galvanically isolated serial interface RS-485 (EIA-485)
  • Stand-by blowdown and stand-by heating
  • Timer-controlled dead leg flushing with regular opening of the solenoid valve and simultaneous operation of the drain pump if no steam is produced - to avoid standing water in the supply lines
air humidification direct room humidification control

Various options for individual configuration.

The MiniSteam E can be adapted specifically to the requirements of the various application areas by means of individual equipment and
configuration with numerous options. This means that almost any project requirement can be optimally met. If necessary, these options
can also be retrofitted at a later time.

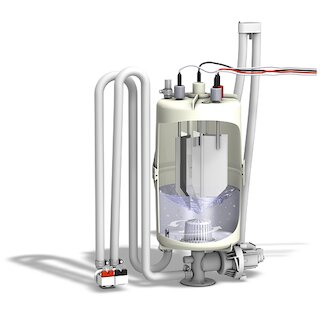

  • SuperFlush, the innovative cylinder flushing device significantly extends cylinder service life

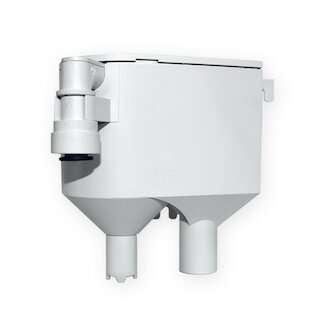

  • HyFlow (DVGW-compliant safety device type AB in accordance with EN 1717) for the protection of drinking water

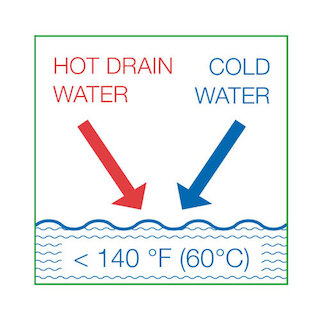

  • HyCool, the integrated waste water cooling system, ensures that the waste water temperature does not exceed 60°C
  • Choice of electrode shapes and materials for optimum operation with different water qualities
  • In addition, up to 2 relay alarm functions, freely parameterizable from 15 functions for optimum integration into a higher-level building management system
superflush for lime management of electrodes steam humidifiers
superflush for lime management of electrodes steam humidifiers
air humidification hycool cooling
air humidification hycool cooling
Applications
Production and manufacturing processes
Public buildings and offices
