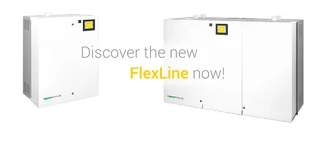

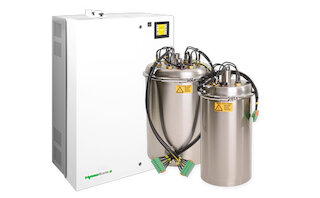

FlexLine steam generators.
New flexibility in award-winning quality.

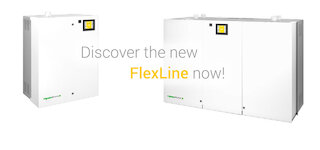

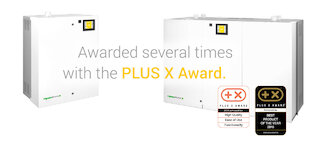

With the FlexLine, HygroMatik provides a new generation of steam generators which consists of a basic model that can be expanded to create an individual solution suitable for all steam requirements. In order to make this flexibility available to our customers quickly, we have developed a modular system. This was awarded in three categories with the Plus X Award and named Product of the Year 2018.



Flexibility pays dividends.

All advantages at a glance.

  • A series of units for all applications and performance categories
  • Ease of installation by means of individual pre-configuration ex factory
  • Expansion of options for retrofitting
  • You only invest in the functions you really need
  • Easy operation
  • Highest quality and energy efficiency
  • Environmentally friendly incorporating reusable components
air humidification system spa wellnessair humidification electrodes air humidification system
Product description

Custom made for every areas of application.

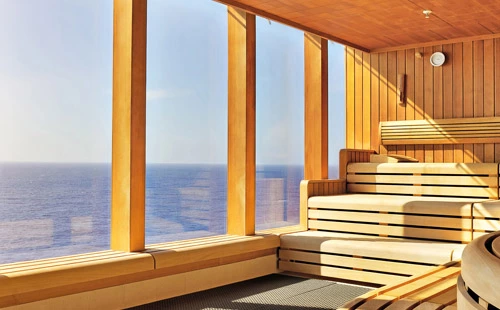

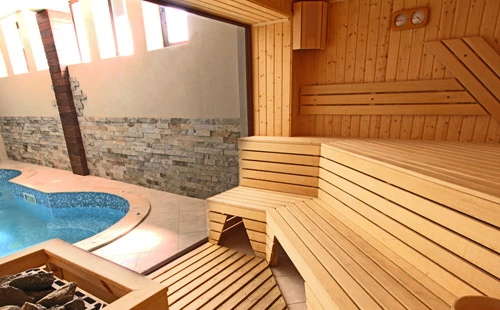

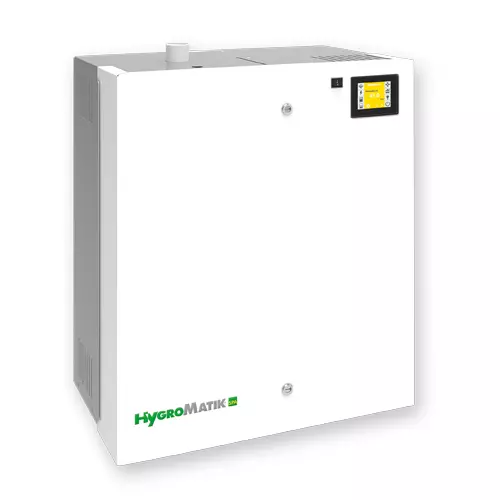

The FlexLine basic model is the basis for all other configuration options. Through its individual extension capability, FlexLine is able to adapt to the requirements of differing applications in the spa and wellness sector.

air humidification system spa wellness
steam bath steam humidification steam generator
air humidification in spa and wellness

Using the best method for optimum steam production.

FlexLine is available as an electrode as well as a heater element steam generator – depending on your water quality.

air humidification electrodes

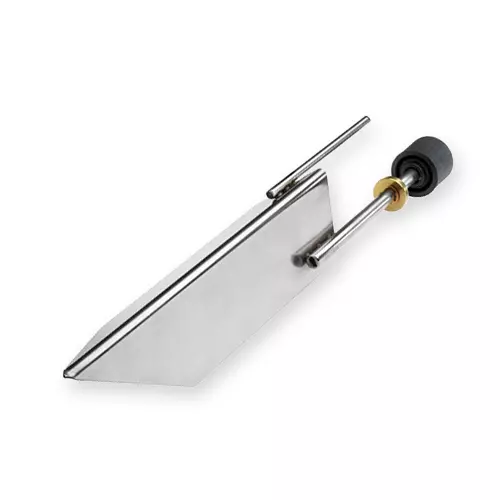

Full-surface electrodes

Electrode steam generators are an optimal solution when simple and reliable steam production is required. Due to the high amount of material, the solid full-surface electrodes of HygroMatik are particularly durable and are very well suited for use with tap water. The electrodes have to be exchanged less often, which in turn keeps the maintenance costs low.

air humidification heating element

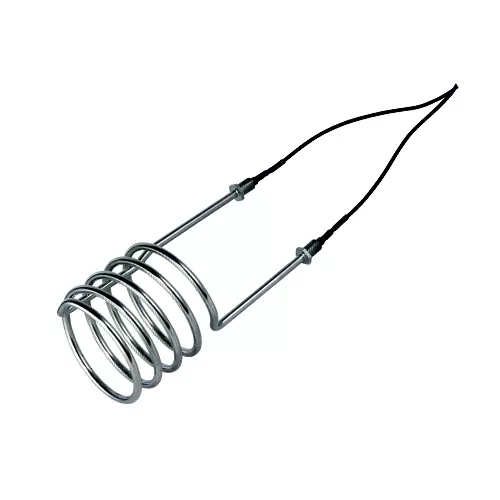

Heater element

Steam cylinders with resistance heater elements made of highly corrosive-resistant alloy are suitable for a wide variety of water qualities, especially for treated water. They offer an extremely high level of control accuracy and ensure a virtually continuous and maintenance-free operation.

Always the right performance for a rich steam picture.

Equip HygroMatik FlexLine with the power you need for optimum steam output. You can select performance classes with steam output from 3 kg/h up to 130 kg/h in 6 unit sizes. An additional performance limitation can easily be programmed.

Manifold options for a steam solution that fits perfectly.

Due to differing spatial conditions every project places unique requirements on the steam solution. Using the manifold options FlexLine can be specifically equipped to create the perfect solution for your project. In addition, various protection and security functions can be installed and activated, e.g.

  • HyFlush (cylinder flushing device)
  • HyCool (integrated waste water cooling)
  • Stub line flushing

This means that your system is optimally protected around the clock and you have less maintenance work. If needed, all options can be
retrofitted. We are always pleased to provide advice.

Excellent ease of operation.

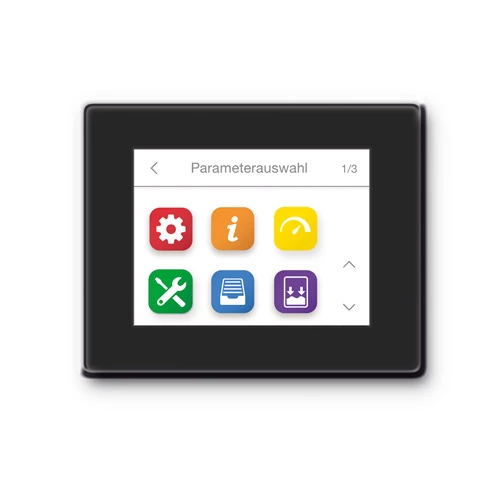

All HygroMatik FlexLine units are equipped with a capacitive 3.5“ touch screen whereby operation and programming is selected via a flat and intuitive menu structure analogous to modern smartphone logic. In addition to this, subsequent software updates are quickly and easily possible via USB stick.

  • At a glance comprehensible pictographs provide information on the operating condition
  • Simple and fast navigation
  • Information and system messages displayed as plain text
  • Easy planning of operating periods by means of programmable timer functions
  • Readout of service messages with date and time
  • Integrated real-time clock
  • Optional: Spa Touch Control – 5“ touch screen for external control
air humidification control

Smart control – powerful and quick response.

The improved control and regulation technology of FlexLine units provides extensive possibilities which are simple and easy to operate.


  • Highest regulating accuracy and top protection from excessive temperatures by means of second supply air and ventilation steam bath fan
  • The option of up to 4 different lighting scenarios
  • Flexible switchover of up to 4 essences without changing containers
  • Freely programmable with overload protected digital input
  • Integrated communication protocol, Modbus RTU or BAcnet
  • 53 different control and reporting functions can be assigned to up to 11 relays depending on the unit

Optimised unit performance for an efficient utilisation.

As with all our products, the HygroMatik FlexLine has been developed for an expecially long life span. The units feature technologies that not only reduce the amount of maintenance required but also the wear of components. FlexLine offers the highest degree of efficiency where energy and resources are concerned.

air humidification electrodes steam humidifier cylinder
  • Adjustable load shedding between 25 % and 100 %, in order to temporarily or permanently adapt operation to the respective load conditions
  • Active energy saving with the ECO function and flexible adjustment of the timer functions

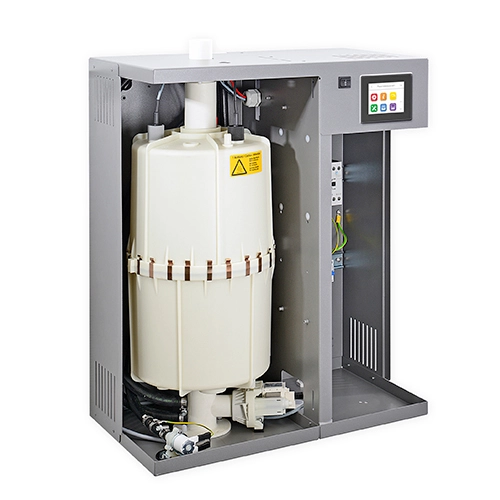

  • Long-term continuous operation: An improved base material aids our reusable cylinders to achieve an even higher temperature resistance and dimensional stability than ever before
  • The split cylinder can simply be opened and cleaned without using chemicals
  • Extremely durable: All FlexLine cabinets are manufactured in corrosion-resistant stainless steel; the powder coating of the housing increases the longevity
air humidification pump
  • Robust blow-down pump for removing scale deposits to ensure long operating life cycles and low maintenance requirement
  • Highest safety standard for electrode steam generators on the market due to integrated protection switch
  • Heater steam generators with electronic, proportional level control with no wear parts

Comprehensive service functions.

We have equipped the HygroMatik FlexLine with smart service functions for operational safety. These provide a new level of safety, reliability, control and comfort.

  • Reliable: Preventive maintenance through permanent monitoring and intelligent evaluation of operating parameters
    can avoid unplanned downtimes
  • Convenient: Detailed messages enable deviations to be identified and rectified more quickly
  • Simple: The diagnostic mode can be started directly via the touch display without commissioning the unit completely
  • Flexible: Service intervals can be calculated by the unit according to time as well as the amount of steam produced
Applications
Spa and wellness
Downloads
List view

Brochures


Mark all
Icon
Temperature sensor
Brochure
Icon
Spa Touch Control
(5 inch touch display)
Brochure
Icon
FlexLine Spa
(Electrode and Heater Type Steam Generators)
Brochure
Icon
Steam Generator Accessories
Flyer
Icon
Steam Bath
Accessory Abstract

Specifications


Mark all
Icon
FlexLine spa heater specification
Heater Type Steam Generators
Icon
FlexLine spa electrode specification
Electrode Steam Generators

Manuals


Mark all
Icon
FlexLine control Spa manual
Icon
FlexLine electrode manual
Icon
FlexLine Plus heater manual
Icon
FlexLine heater manual
Icon
Spa touch control

Functional principles


Mark all
Icon
FlexLine Spa principle

Maintenance videos


Mark all
Icon
FlexLine Electrode Maintenance
Icon
FlexLine Heater Type Maintenance

3D models


Mark all
Icon
FLE15-25 FLH15-25
Icon
FLE30-40
Icon
FLE05-10 FLH03-09
Icon
FLE50-65 FLH30-50

Technical Data


Mark all
Icon
FLE30-40
Dimensions (DWG)
Icon
FLE100-130 FLH80-100
Dimensions (DWG)
Icon
FlexLine Spa (Electrodes)
Technical Data
Icon
FlexLine Spa (Heater)
Technical Data
Icon
FLE80
Dimensions (DWG)
Icon
FLE05-10 FLH03-09
Dimensions (DWG)
Icon
FLE50-65 FLH30-50
Dimensions (DWG)
Icon
FLE15-25 FLH15-25
Dimensions (DWG)
Icon
FlexLine
Dimensions
