Economical solution of the highest standard.
With electrodes or heating elements as required.
Steam humidifiers StandardLine

Steam humidifiers StandardLine
reliable and economical.

HygroMatik´s StandardLine is the solution for reliable steam humidification at a particularly attractive cost / performance ratio. A steam humidifier in solid processing quality, well-designed and maintenance-friendly. Depending on water quality, you can choose between electrodes and heater type heating elements.

The economical low-cost solution at the highest standard.

All advantages at a glance.

      • Reliable steam humidification at an affordable price
      • Compact and space-saving
      • Particularly easy to maintain
      • Basin made of corrosion-resistant stainless steel
      • Auto-adaptive water management
      • Hygienic humidification with mineral-free steam

Product description

One Humidifier – two variants.

The StandardLine can be ordered either as an electrode or as a heater element steam humidifier.

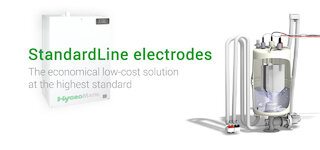

air humidification with electrodes @

Full-surface electrodes

Electrode steam humidifiers are an optimal solution when simple and reliable steam humidification is required. Due to the high amount of material, the solid full-surface electrodes of HygroMatik are particularly durable and are very well suited for use with tap water. The electrodes have to be exchanged less often, which in turn keeps the maintenance costs low.

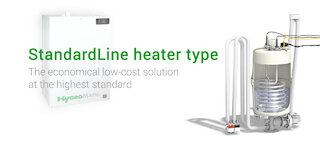

humidification heating element @

Heater element

Steam cylinders with resistance heater elements made of highly corrosive-resistant alloy are suitable for a wide variety of water qualities, especially for treated water. They offer an extremely high level of control accuracy and ensure a virtually continuous and maintenance-free operation.

Well served - all information at a glance.

With the clear LED display of the StandardLine series you always have all important device and process data permanently in view. The simple display symbols give instant clarity about the status of the steam humidifier. The keys allow quick and intuitive navigation through the clear and easy-to-understand menu.

air humidification control @

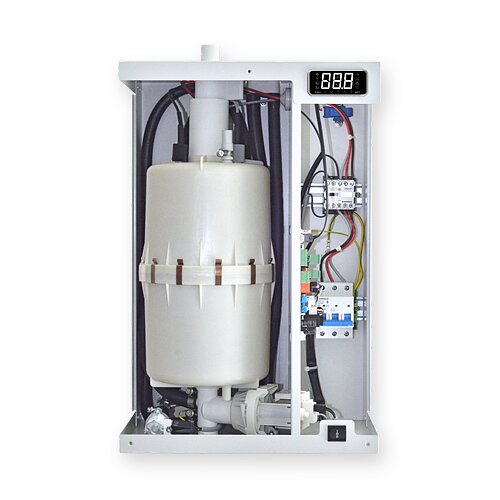

air humidification electrodes steam humidifier cylinder @

The split cylinder can simply be opened and cleaned.

HygroMatik always attaches great importance to sustainable solutions for all products, which impact as little as possible on humans and the environment. For this reason, we never use exchange cylinders, but only reusable and cleanable steam cylinders, which are easy to clean without using chemicals.

A robust blowdown pump extends the maintenance intervals.

The robust blowdown pump supports the combined flushing and lime collection system by the sludge removal of hardness forming elements. Thus, precipitated lime can be discharged and does not accumulate at all. This reduces the amount of lime in the screen and thus the maintenance frequency.

air humidification pump @

Applications

Production and manufacturing processes

Public buildings and offices
