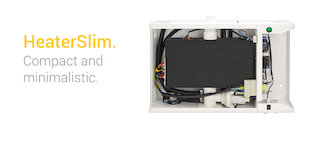

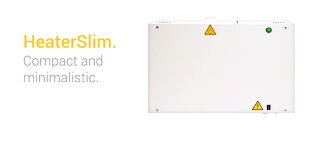

HeaterSlim. Compact and minimalistic.

The heater steam generator HeaterSlim has an appropriate design, is slim in size and comes with output of 6.6 or 10 kg/h, making it particularly suitable for private and suite spas.

Excellent access to components saves time in installation and maintenance.

The units can operate using fully demineralised, softened or mains water. When operated with fully desalinated water, the units are practically maintenance-free. The units are environmentally-friendly, efficient, hygienic and safe. The produced steam promotes health and well-being.

The HeaterSlim can be digitally controlled, read out and parameterised using the integrated Modbus RTU communication protocol.

The units feature the VDE and GS test marks and conform to CE and EAC.

air humidification steam generator steam spa wellnessair humidification steam generator steam spa wellnessair humidification steam generator steam spa wellness
Product description

Your safety is our priority.

The water is heated in the energy-efficient insulated stainless steel cylinder using an immersion-type heater. The HeaterSlim guarantees absolute process safety by level measurement using sensor electrodes. The mechanical overheating protection of the heater and electrical level control provide highest possible safety in operation. The cabinet can be locked and thus protected against unauthorised access.

Hygienically perfect.

The HeaterSlim produces mineral-free, hygienic steam for your well-being and health.

Flexible connections and performance.

The HeaterSlim can be flexibly deployed using the unit's 230 V or 400 V connections. Thanks to easily removable heater elements HeaterSlim offers you two performance classes in one device size.

air humidification steam generator steam spa wellness

Simple maintenance - Reusable cylinder.

The HeaterSlim can be installed in confined corners and still offers ideal component access. For maintenance purposes the cylinder can be easily removed without special tools. Also the heater elements can be simply taken out and cleaned. If the heater element steam generator is operated with fully demineralised water, there will be almost no deposits and the maintenance requirement is minimal.

air humidification steam generator steam spa wellness

Easy usability with the Spa Touch Control. (optional)

The HeaterSlim is optimally designed for the use with the Spa Touch Control.
With the external, permanently installed 5" touch display, temperature, fragrance and light in the steam bath can be easily and conveniently controlled.

  • Display surface with IP65* protection class
  • Robust capacitive 5" touch screen display
  • Resolution 800 x 480, 65k colours
  • Scope of functions can be configured (target temperature, fragrance, etc.)
  • Real time clock with running time and timer program
  • High operational reliability due to indication of maintenance and fault messages of the steam generator

*Protection class IP65 of the installation requires an appropriate wall sealing provided on-site.

air humidification steam control
Applications
Spa and wellness
