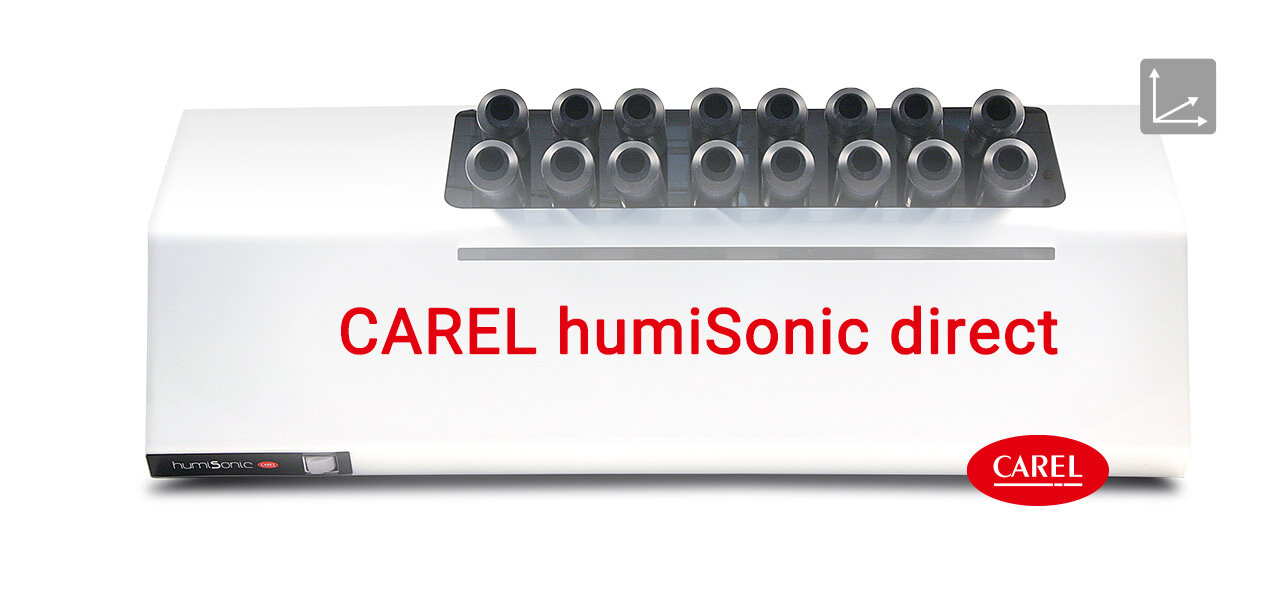

CAREL humiSonic direct.
Adiabatic ultrasonic nebuliser.

CAREL humiSonic direct is an adiabatic ultrasonic nebuliser for direct humidification of the room air,
with which an additional cooling effect is achieved. With the adiabatic humidification microscopic water
droplets evaporate spontaneously in the air. The change of state from liquid to gaseous withdraws
energy from the air in the form of heat stored. The outflowing air cools down and reduces the ambient
temperature.

All advantages at a glance.

  • When operated with demineralised water very easy to maintain:
    10.000 continuous operating hours guaranteed
  • Efficient: additional cooling effect
  • Hygienic: all water-bearing components made of stainless steel
  • Optimal humidification of the room air through integrated, smooth-running ventilation device
Product description

CAREL humiSonic direct.
Hygienic, low-maintenance and quiet.

CAREL humiSonic direct is operated with demineralised water. In addition all water-bearing components are made of stainless steel. In the humidifier housing no water accumulates at the end of the humidification cycle, and if the system is not working the stand-by
blowdown ensures maximum hygiene.


When operated with demineralised water, CAREL humiSonic direct is equipped with guaranteed 10.000 continuous operating hours very easy to maintain. Its integrated, quiet running ventilation unit distributes the aerosols evenly in the room and enables optimum humidification.

More comfort, more functions –
optionally expandable.

With an optional interface card, CAREL humiSonic direct can be connected to an external display for quick and intuitive configuration. This can be spatially be installed separately from the device.

The CAREL humiSonic direct can be controlled continuously or single stage. Optionally, the control can also be carried out via PI control, e.g. to precisely control the humidity in larger rooms.

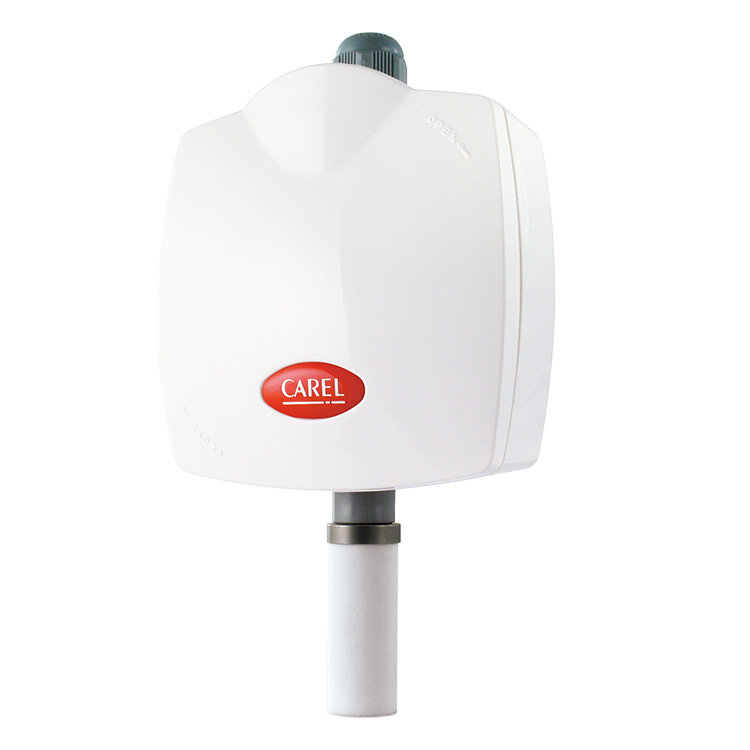

CAREL DPP sensor

Specially developed for the precise
measurement of high humidity levels (continuous control). Also available are models with RS485 connection with CAREL
Modbus protocol.

Applications
Production and manufacturing processes
Public buildings and offices
Downloads
List view

Carel brochures


Mark all
Icon
direct room humidifiers brochure
incl. humiSonic (CAREL)
Icon
sensor brochure
sensors and hygrostats for humidification systems

Carel Specifications


Mark all
Icon

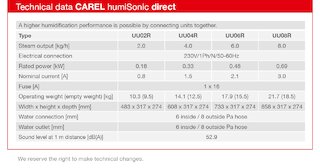

humiSonic direct specifications
Adiabatic ultrasonic nebuliser

Further information and product documents about humiSonic direct are available here.
